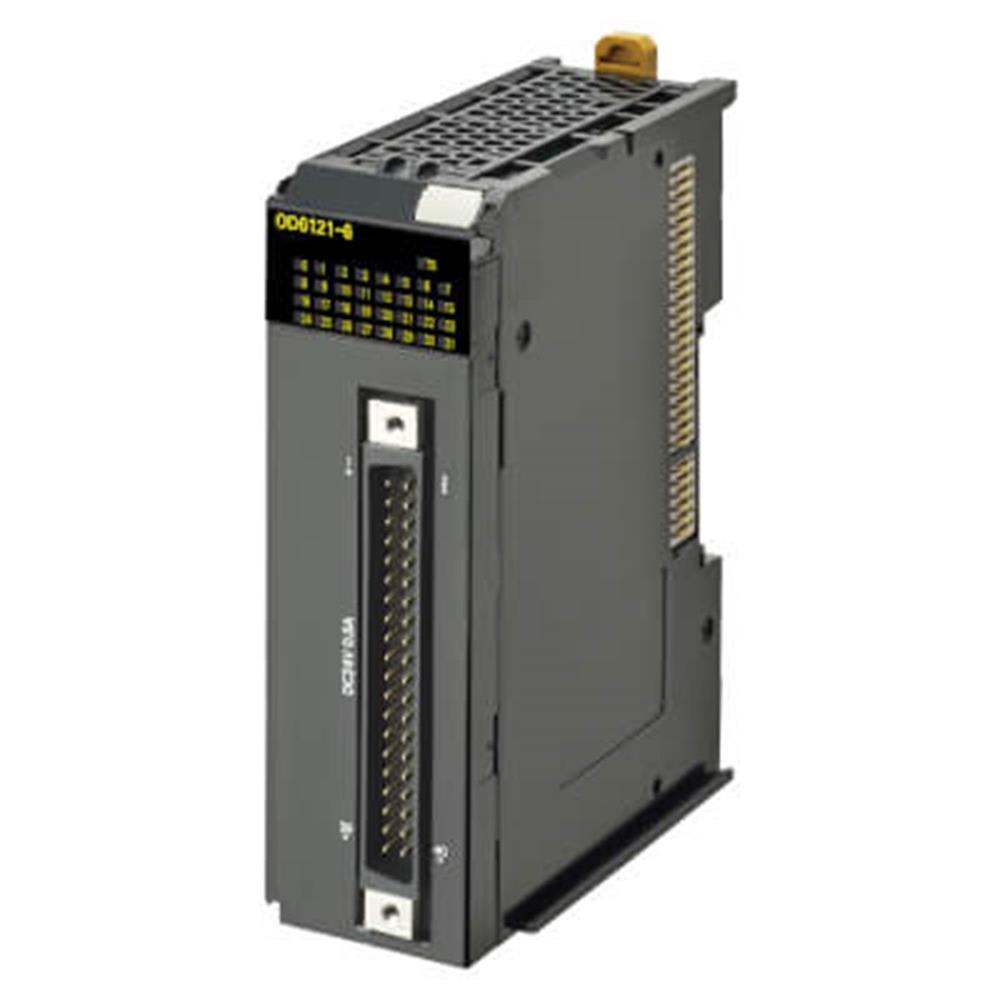

Omron NX-OD6121-6

Name: Omron NX-OD6121-6
Brand: Omron
SKU: NX-OD6121-6

FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ!

32 Digital Outputs, Standard speed, NPN 24 VDC, 0.5 A/point, 4 A/NX Unit, FCN40 connector (not included), 30 mm wide

Stok bilgisi için arayınız.

Tavsiye Et

Yorum Yaz

I/O system	NX I/O Bus
Type of module	Digital I/O
Number of digital inputs	0
Digital input type	None
OFF/ON delay	0.1-0.8 ms
Number of digital outputs	32
Digital output type	NPN
Permitted voltage at output	15.0-28.8 V
Output current	0.5 A
Short-circuit protected outputs	x
Connection method	1-wire
Signal processing	Free running, Standard speed, Synchronous
IO link master	x
I/O connection type	FCN (plug not included)
Number of I/O connectors	1
Detachable I/O connector
Suitable for safety functions	x
SIL according to IEC 61508	None
Communication port(s)	None
Number of IOV (V+) terminals	4
Number of IOG (V-) terminals	4
Number of COM terminals	0
Degree of protection (IP)	IP20
Height	100 mm
Width	30 mm
Depth	72.5 mm
Weight	90 g
