Omron F3SG-4RE1630P30

Name: Omron F3SG-4RE1630P30
Brand: Omron
SKU: F3SG-4RE1630P30

FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ!

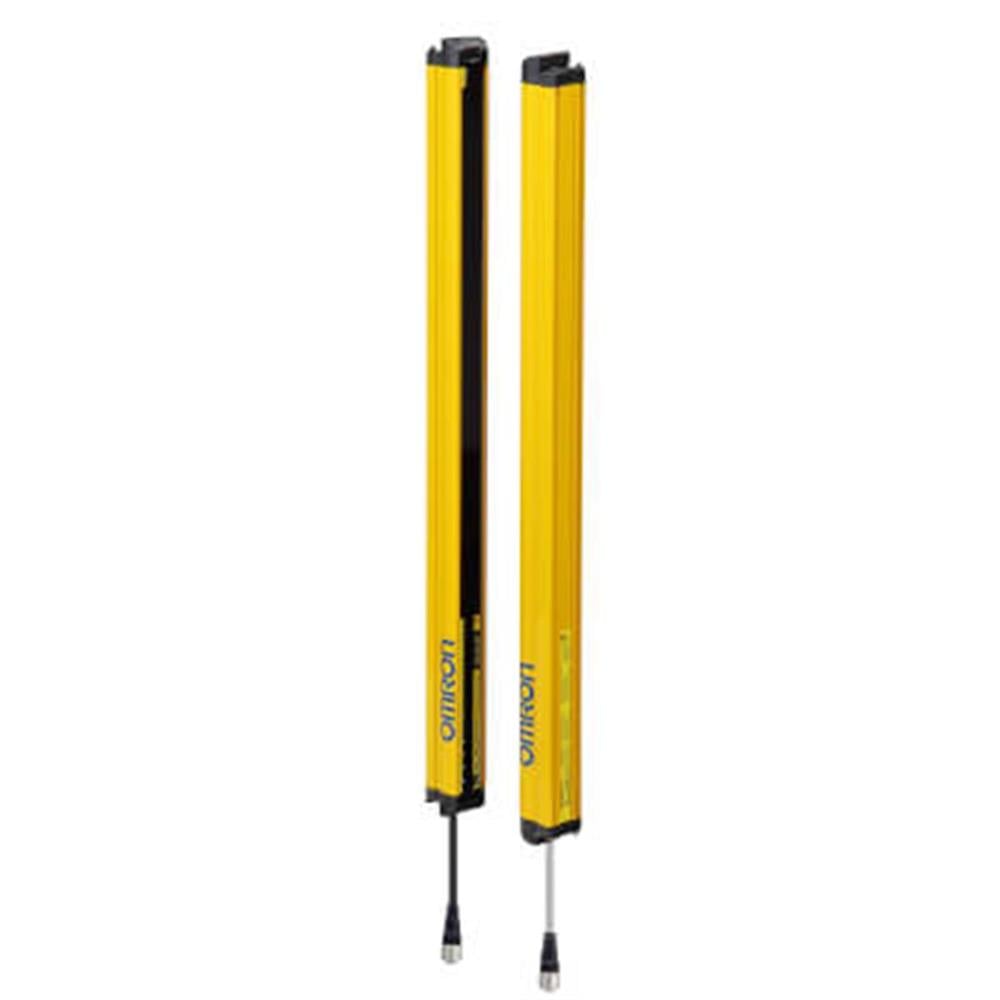

Safety Sensor, F3SG-R Easy, Type 4, 30 mm resolution, range 0.3 to 20.0 m, height 1630 mm, PNP

Stok bilgisi için arayınız.

Tavsiye Et

Yorum Yaz

Type of safety according to IEC 61496-1	4
Type of protection	Hand protection
Detection capability	30 mm
Safety field height	1630 mm
Beam gap	20 mm
Number of beams	80
Number of protected semiconductor outputs	2
Number of semiconductor outputs with signalling function	0
Maximum safety range	20 m
Minimum operating distance	0.3 m
Response time	9 ms
Cascadable	x
With muting function	x
With beam coding	x
Type of switching output of the OSSD	PNP
Key features	Fast response (ON/OFF applications), Simple wiring
Suitable for safety functions	+
Scope of delivery	Transmitter and receiver
Wavelength of the sensor	870 nm
Connection method	M12 pigtail Smartclick connector
Supply voltage DC	19.2-28.8 V
Voltage type	DC
Max. output current at protected output	300 mA
Degree of protection (IP)	IP67
Ambient temperature	-10-55 °C
Overall length	1630 mm
Height of sensor	35 mm
Width sensor	35 mm
