Omron F3SG-4PGA1070-4C

Name: Omron F3SG-4PGA1070-4C
Brand: Omron
SKU: F3SG-4PGA1070-4C

FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ!

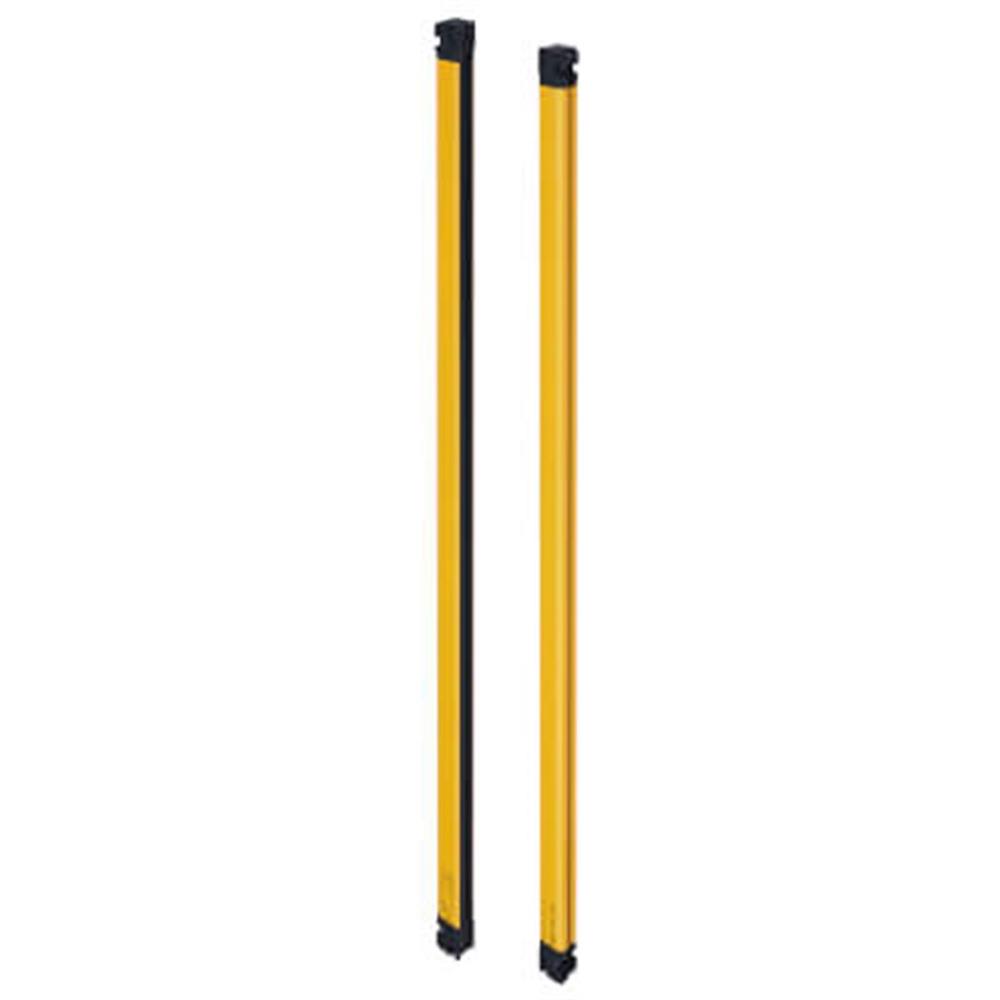

Safety Multi-Light Beam, F3SG-PG Perimeter Guarding, Type 4, 4 beams, range 0.5 to 5 m, product length 1070 mm, Active/passive

Stok bilgisi için arayınız.

Tavsiye Et

Yorum Yaz

Sensing method	Safety multi-beam
Type of protection	Body protection
Number of beams	4
Safety field height	1070 mm
Type of safety according to IEC 61496-1	4
Beam spacing	300 mm
Maximum safety range	5 m
Minimum operating distance	0.5 m
Key features	Active/passive, Area Beam Indicator, Auxiliary output, Designated beam output, External Device Monitoring (EDM), External test, Interlock, Muting, Mutual interference prevention, PNP/NPN selection, Response time adjustment
Degree of protection (IP)	IP65/IP67
Cascadable	X
Number of protected semiconductor outputs	2
Number of semiconductor outputs with signalling function	1
Type of switching output of the OSSD	PNP/NPN
Response time	8 ms
With muting function
With beam coding
Communication option(s)	Bluetooth, IO-Link, USB
Scope of delivery	Transmitter and receiver
Wavelength of the sensor	870 nm
Connection method	Root connector (order separately)
Max. output current at protected output	300 mA
Ambient temperature	-30-55 °C
Number of fixed side-mount brackets	2
Number of adjustable side-mount brackets	2
Number of intermediate brackets	1
