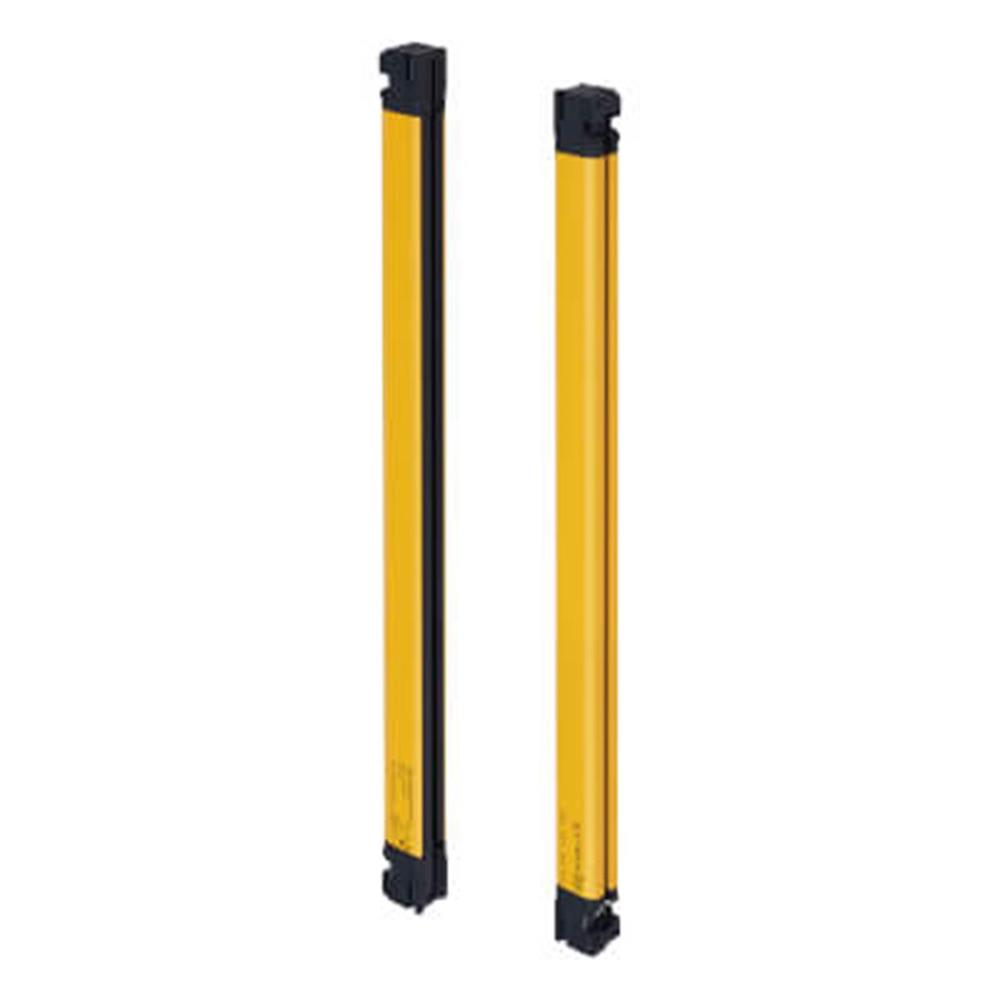

Omron F3SG-4PGA0970-3L

Name: Omron F3SG-4PGA0970-3L
Brand: Omron
SKU: F3SG-4PGA0970-3L

FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ!

Safety Multi-Light Beam, F3SG-PG Perimeter Guarding, Type 4, 3 beams, range 0.5 to 70 m, product length 970 mm, Active/active

Tavsiye Et

Yorum Yaz

Sensing method	Safety multi-beam
Type of protection	Body protection
Number of beams	3
Safety field height	970 mm
Type of safety according to IEC 61496-1	4
Beam spacing	400 mm
Maximum safety range	70 m
Minimum operating distance	0.5 m
Key features	Active/active, Area Beam Indicator, Auxiliary output, Designated beam output, External Device Monitoring (EDM), External test, Interlock, Muting, Mutual interference prevention, Operating range selection, PNP/NPN selection, Response time adjustment
Degree of protection (IP)	IP65/IP67
Cascadable	x
Number of protected semiconductor outputs	2
Number of semiconductor outputs with signalling function	1
Type of switching output of the OSSD	PNP/NPN
Response time	8 ms
With muting function
With beam coding
Communication option(s)	Bluetooth, IO-Link, USB
Scope of delivery	Transmitter and receiver
Wavelength of the sensor	870 nm
Connection method	Root connector (order separately)
Max. output current at protected output	300 mA
Ambient temperature	-30-55 °C
Number of fixed side-mount brackets	2
Number of adjustable side-mount brackets	2
Number of intermediate brackets	1
