Omron D41D-1CD-N1
Omron D41D-1CD-N1

Omron D41D-1CD-N1

FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ!

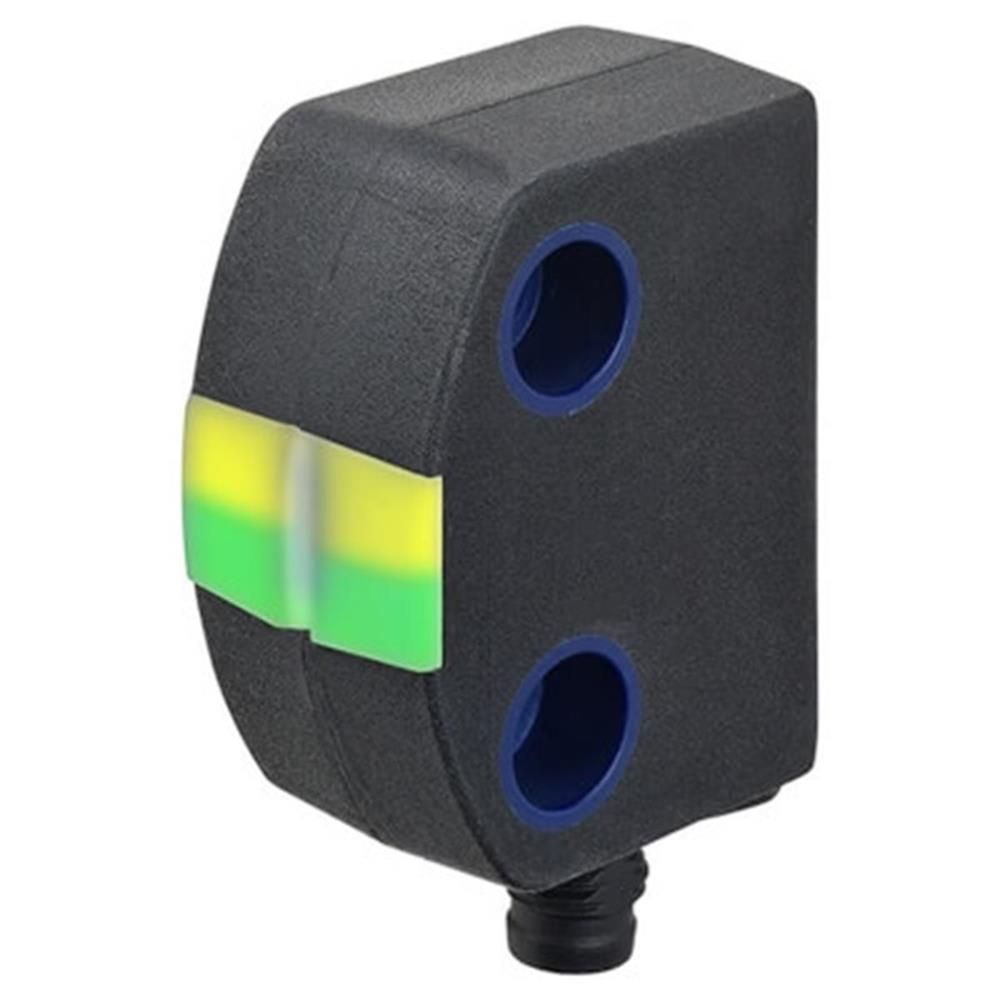

Non-contact Interlock Switch, RFID High-coded, PNP, Test Pulse, Connector plug M8

Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Tavsiye Et
Yorum Yaz
Sorular (0) ve Cevaplar (0)
Coding Unique
Connection method Connector M8 - 8 pin
Degree of protection (IP) IP65/IP67
Diagnostic LED +
Door contacts NC 2
Door contacts NO 1
Door switch type Non-contact, RFID coded
Guard-lock x
High coding level +
With LED indicator +
Material housing PBT
Number of auxiliary outputs 1
Auxiliary monitoring output PNP type, short-circuit proof
Cable exit direction Bottom
LED indicators Actuator detected (yellow)
Make before break x
Max. differential travel 20 %
Max. operating distance ON to OFF 18 mm
Min. operating distance OFF to ON 10 mm
Mounting method M4 screws
Number of connectable switches 30 max. (wiring length: 100 m max.)
Number of OSSD 2
Output test pulses +
Output type PNP
Shape Rectangular compact
Switch without actuator +
Teaching limitation +
Vibration resistance 10 to 55 Hz, amplitude 1.0 mm
