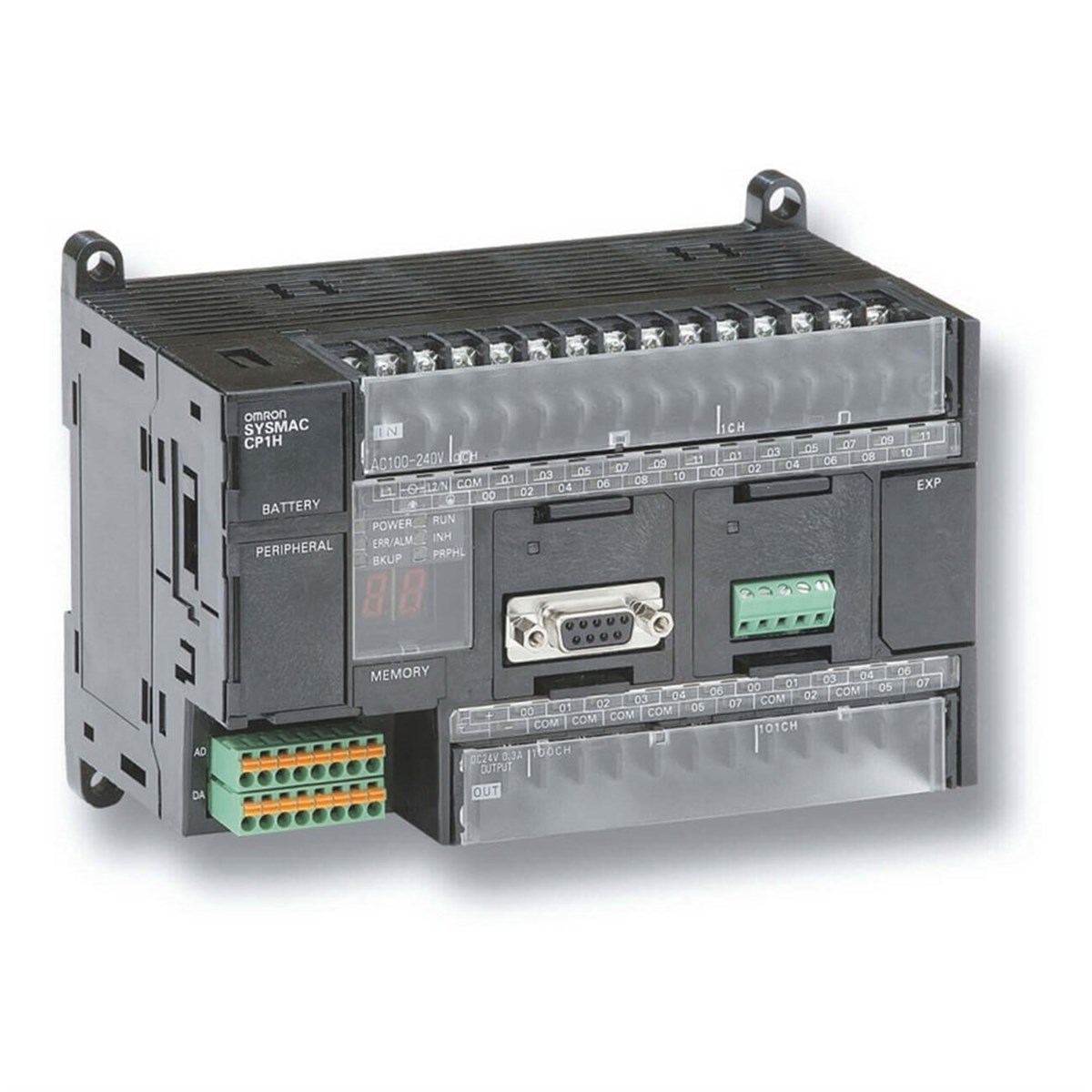

Omron CP1H-XA40DT1-D

Name: Omron CP1H-XA40DT1-D
Brand: OMRON
SKU: CP1H-XA40DT1-D

FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ!

PLC, 24 VDC supply, 24 x 24 VDC inputs, 16 x PNP outputs 0.3 A, 4 x analog inputs, 2 x analog outputs, 20K steps program + 32K words data memory

Tavsiye Et

Yorum Yaz

Supply voltage type	AC
Number of digital inputs	24
Input type	PNP/NPN
Number of digital outputs	16
Output type	Relay
Program capacity	20 K steps
Data memory capacity	32 K words
Logic execution time	0.10 µs
Communication port(s)	USB
Number of Ethernet ports	0
Number of USB ports	1
Number of RS-232 ports	0
Number of RS-485 ports	0
Communication option(s)	CAN, CompoBus/S Master, CompoBus/S Slave, CompoNet Master, DeviceNet Master, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, Ethernet TCP/IP, MODBUS Master, MODBUS Slave, PROFIBUS DP Master, PROFIBUS DP Slave, PROFINET Master, Serial RS-232C, Serial RS-422, Serial RS-485
Number of encoder input channels	4
Max. encoder input frequency	100 kHz
Max. number of PTP axes	0
Max. pulse output frequency	0 kHz
Function Block programming
Battery-free memory backup
Real-time clock
Analog option boards
Max. number of analog I/O channels	62
Max. number of local I/O points	320
Max. number of expansion units	7
Built-in auxiliary 24 VDC output	300 mA
Operating temperature range	0-55 °C
Height	90 mm
Width	150 mm
Depth	85 mm
Weight	750 g
