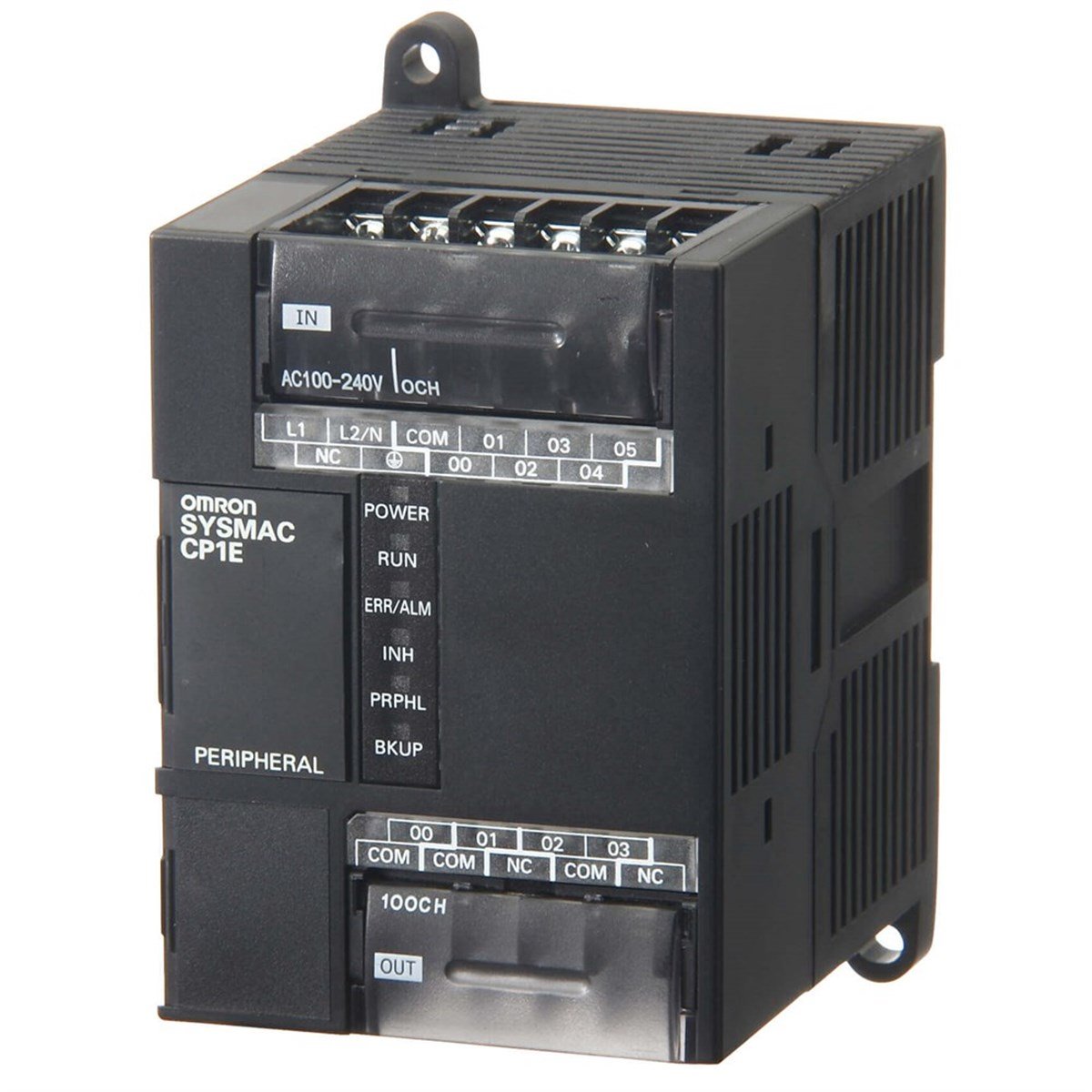

Omron CP1E-E10DT1-D

Name: Omron CP1E-E10DT1-D
Brand: OMRON
SKU: CP1E-E10DT1-D

FİYAT VE TESLİM SÜRESİ İÇİN LÜTFEN İLETİŞİME GEÇİNİZ!

PLC, 24 VDC supply, 6 x 24 VDC inputs, 4 x PNP outputs 0.3 A, 2K steps program + 2K words data memory

Stok bilgisi için arayınız.

Tavsiye Et

Yorum Yaz

Supply voltage type	DC
Number of digital inputs	6
Input type	PNP/NPN
Number of digital outputs	4
Output type	PNP
Program capacity	2 K steps
Data memory capacity	2 K words
Logic execution time	1.19 µs
Communication port(s)	USB
Number of Ethernet ports	0
Number of USB ports	1
Number of RS-232 ports	0
Number of RS-485 ports	0
Communication option(s)	None
Max. encoder input frequency	10 kHz
Max. number of PTP axes	0
Max. pulse output frequency	0 kHz
Function Block programming
Battery-free memory backup
Real-time clock
Analog option boards
Max. number of analog I/O channels	0
Max. number of local I/O points	10
Max. number of expansion units	0
Built-in auxiliary 24 VDC output	0 mA
Operating temperature range	0-55 °C
Height	90 mm
Width	66 mm
Depth	85 mm
Weight	300 g
